115
Monumental scale for the front of the house.
Demonstration assembly with semantic components — final Orluti extrusion geometry replaces this model via the documented GLB pipeline. Values marked ‡ await test-report confirmation.
Overview

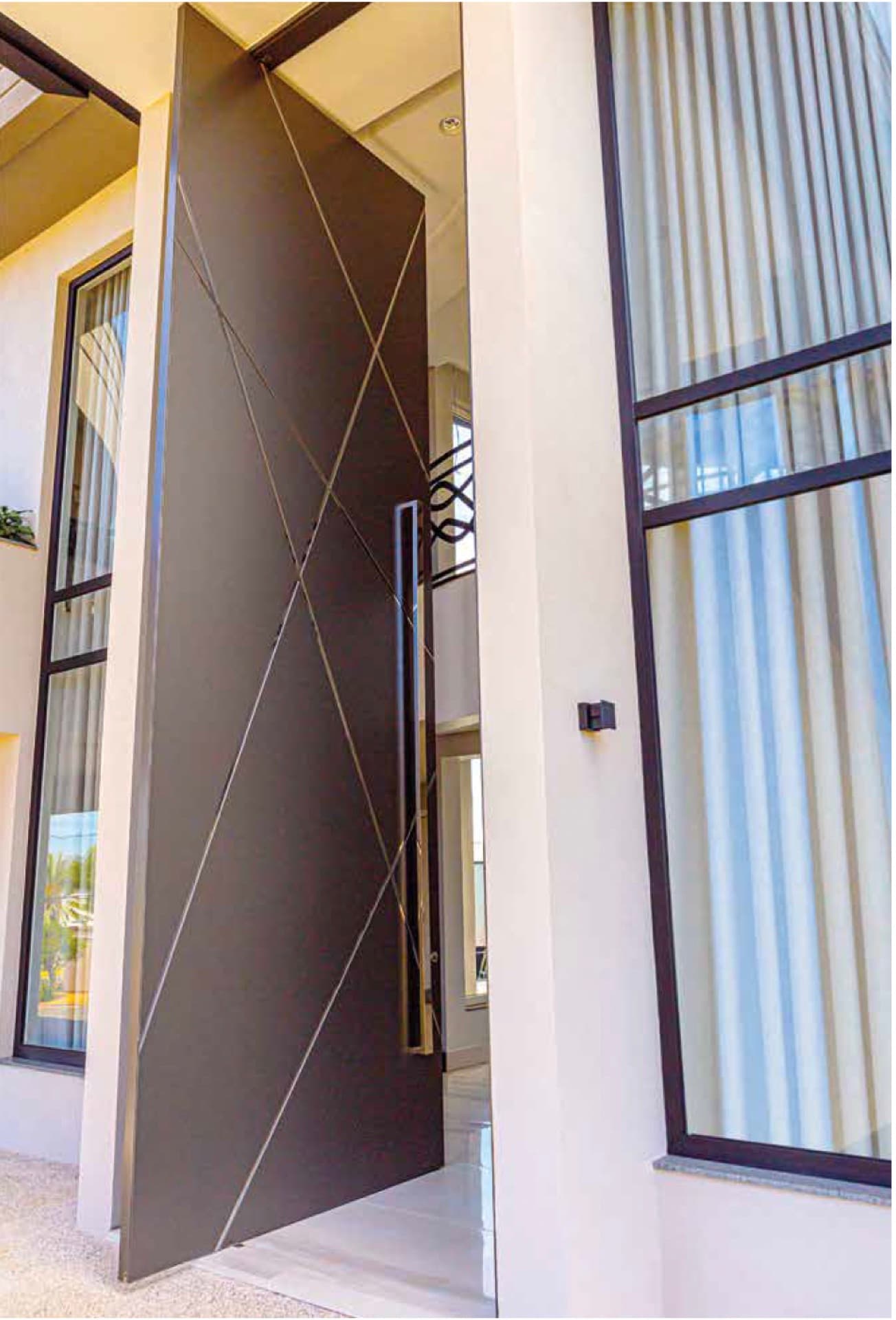

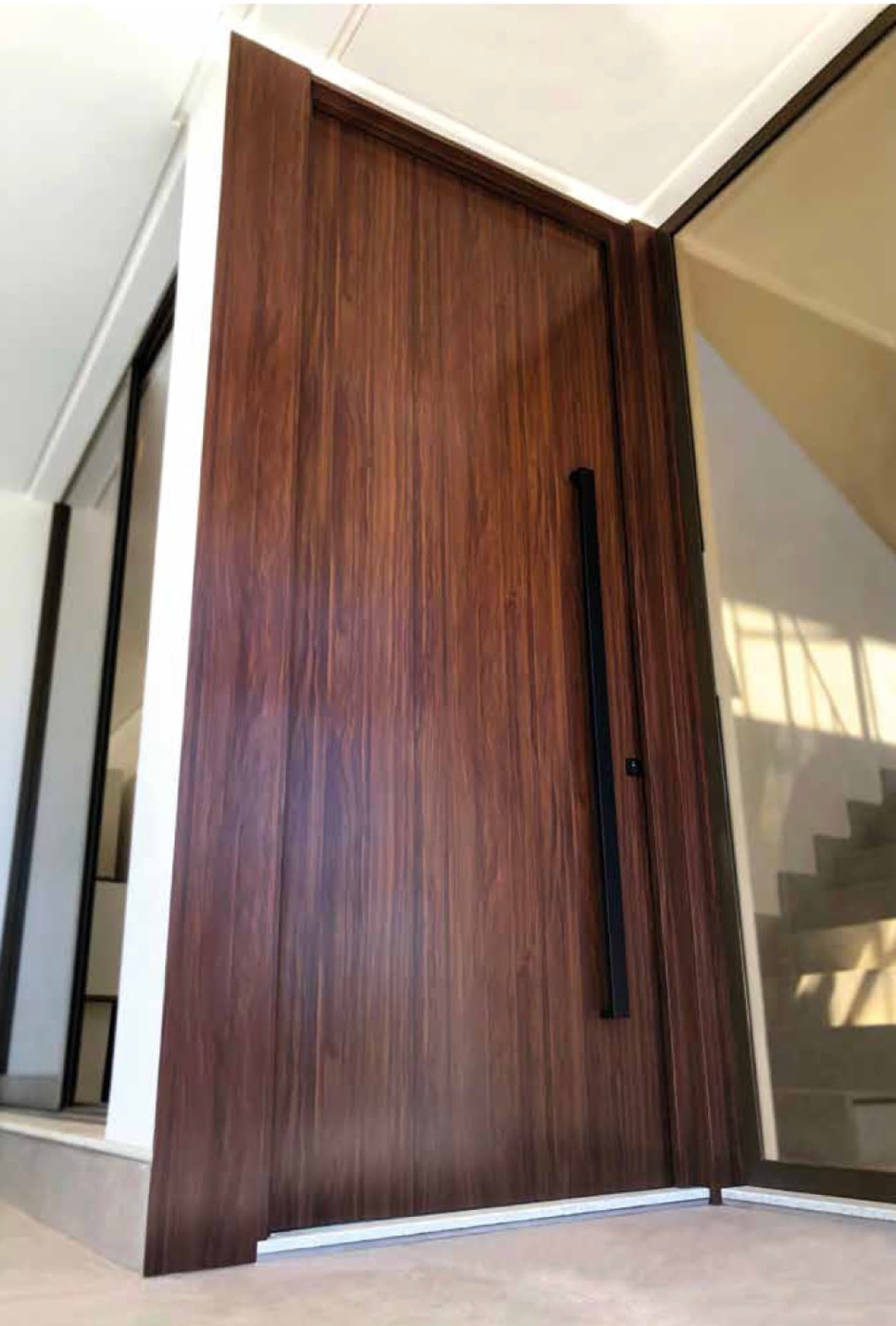

System 115 turns the entrance into architecture: an oversized door leaf rotating on a floor-mounted pivot instead of side hinges, so weight limits stop dictating width. Self-closing pivot sets hold the leaf at defined open positions, and multi-point locking with optional biometric entry secures the leaf along its full height.
Oversized leaves
Pivot hardware carries widths side hinges can't. [CONFIRM MAX LEAF]
Balanced rotation
The offset pivot makes a monumental leaf feel weightless.
Biometric option
Face / fingerprint recognition integrates into the leaf.
Configurations
Available operating formats for this system.
One monumental rotating leaf.
Pivot leaf between fixed glazing.
Hardware
- Pivot set
Floor-mounted load-rated pivot with defined hold positions.
- Multi-point lock
Full-height locking with optional biometric module.
- Entrance pull
Full-height or sculpted pulls in matching finishes. [CONFIRM PULL OPTIONS]
Glazing
- Double insulated glazing
1" insulated glazing units with warm-edge spacers and argon fill. Low-E coatings selected per orientation and climate. [CONFIRM IGU MAKEUP]
- Triple glazing
Triple-pane units for cold climates and passive-grade targets. [CONFIRM AVAILABILITY PER SYSTEM]
- Acoustic laminated
Acoustic PVB interlayers reduce sound transmission by up to 45 dB in tested configurations.
- Laminated / impact
Laminated safety glass for overhead, railing, and impact-rated applications. [CONFIRM IMPACT RATINGS]
Finishes
- Matte Blackpowder coat
- Bronze Anodizedanodized
- Champagneanodized
- Silver Anodizedanodized
- Custom RALcustom
Specifications
System
- Operation
- Offset floor pivot, hold-open positions
- Leaf size
- [CONFIRM MAX LEAF DIMENSIONS]‡
- Thermal break
- Polyamide struts‡
‡ Representative values pending confirmation against Orluti test reports — final performance depends on configuration and glazing.
Documents
Documents are issued per system with current tested values — request routes through the quote form so an engineer can match the right revision to your project.
Applications
Spec the 115 into
your next project.
Schedules · plans · DWGs accepted
